Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4001 - 1N4007
Standard Package	5000
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Tape & Box (TB)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 1000V
Capacitance @ Vr, F	15pF @ 4V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41
Operating Temperature - Junction	-65°C ~ 125°C

MMBD4448HT-7-F	Diodes Incorporated, Diode Standard 80V 250mA Surface Mount SOT-523,	View
RS3J-13-F	Diodes Incorporated, Diode Standard 600V 3A Surface Mount SMC,	View
1N5551C.TR	Semtech Corporation, Diode Standard 400V 5A Through Hole Axial,	View
DA2J10100L	Panasonic Electronic Components, Diode Standard 80V 100mA (DC) Surface Mount SMini2-F5-B,	View
1N4004-T	Diodes Incorporated, Diode Standard 400V 1A Through Hole DO-41,	View
BAV21-TR	Vishay Semiconductor Diodes Division, Diode Standard 200V 250mA (DC) Through Hole DO-35,	View
VS-300U60A	Vishay Semiconductor Diodes Division, Diode Standard 600V 300A Stud Mount DO-205AB, DO-9,	View
HER108G A0G	Taiwan Semiconductor Corporation, Diode Standard 1000V 1A Through Hole DO-204AL (DO-41),	View
ESH1C R3G	Taiwan Semiconductor Corporation, Diode Standard 150V 1A Surface Mount DO-214AC (SMA),	View
CD1408-FU1400	Bourns Inc., Diode Standard 400V 1A Surface Mount 1408,	View
1N4936-T	Diodes Incorporated, Diode Standard 400V 1A Through Hole DO-41,	View
SE20AFJHM3/6A	Vishay Semiconductor Diodes Division, Diode Standard 600V 2A (DC) Surface Mount DO-221AC (SlimSMA),	View

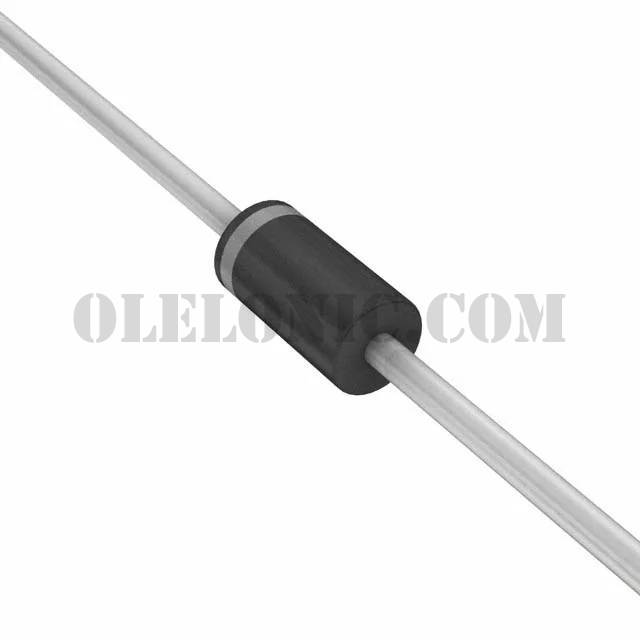

1N4007TA
