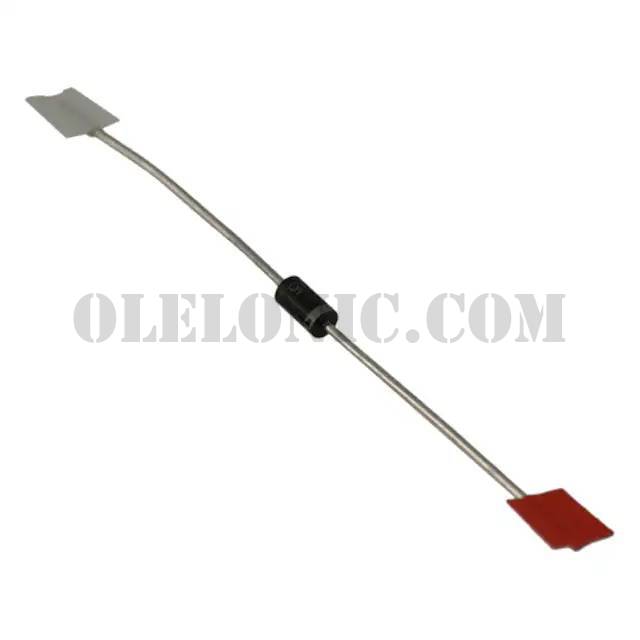

1N4003-TP

1N4003-TP

Part Number1N4003-TP

ManufacturerMicro Commercial Co

DescriptionDIODE GEN PURP 200V 1A DO41

Datasheet1N4001 - 1N4007 Datasheet

Package / CaseDO-204AL, DO-41, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 1A Through Hole DO-41

To learn about the specification of 1N4003-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N4003-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N4003-TP.
We are offering 1N4003-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N4003-TP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4001 - 1N4007 Datasheet
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	5µA @ 200V
Capacitance @ Vr, F	15pF @ 4V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	1N4003
