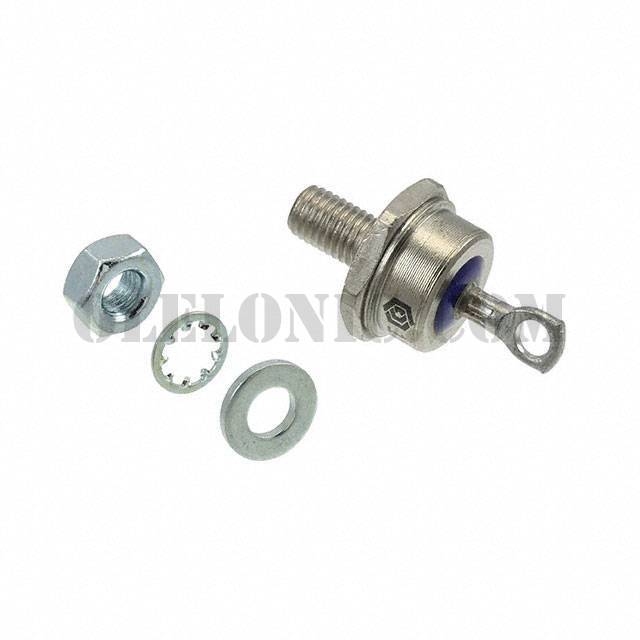

1N2138AR

1N2138AR

Part Number1N2138AR

ManufacturerGeneSiC Semiconductor

DescriptionDIODE GEN PURP REV 600V 60A DO5

Datasheet1N2133A thru 1N2138AR

Package / CaseDO-203AB, DO-5, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard, Reverse Polarity 600V 60A Chassis, Stud Mount DO-5

To learn about the specification of 1N2138AR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N2138AR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N2138AR.
We are offering 1N2138AR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N2138AR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N2133A thru 1N2138AR
Standard Package	100
Manufacturer	GeneSiC Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	60A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 60A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 50V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-5
Operating Temperature - Junction	-65°C ~ 200°C
Base Part Number	1N2138AR
