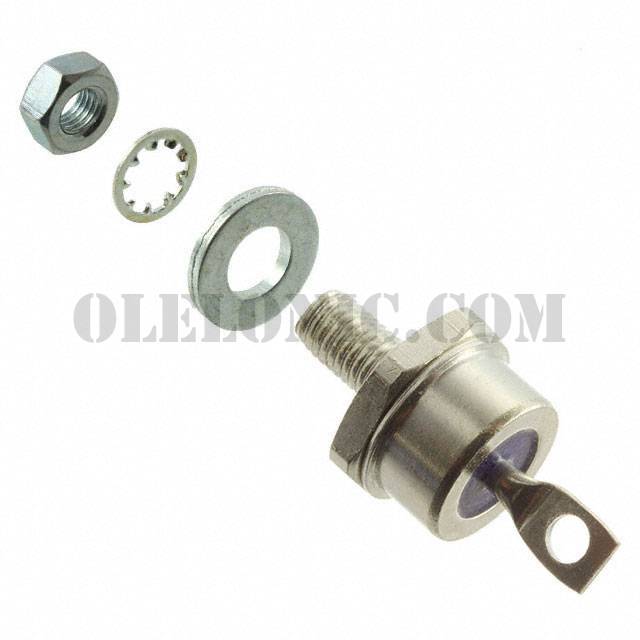

1N1184A

1N1184A

Part Number1N1184A

ManufacturerGeneSiC Semiconductor

DescriptionDIODE GEN PURP 100V 40A DO5

Datasheet1N1183A thru 1N1190AR

Package / CaseDO-203AB, DO-5, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 40A Chassis, Stud Mount DO-5

To learn about the specification of 1N1184A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N1184A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N1184A.
We are offering 1N1184A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N1184A - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N1183A thru 1N1190AR
Standard Package	100
Manufacturer	GeneSiC Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	40A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 40A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 50V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-5
Operating Temperature - Junction	-65°C ~ 200°C
Base Part Number	1N1184
