Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage MLC Chips
Standard Package	1
Manufacturer	AVX Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10000pF
Tolerance	±20%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose

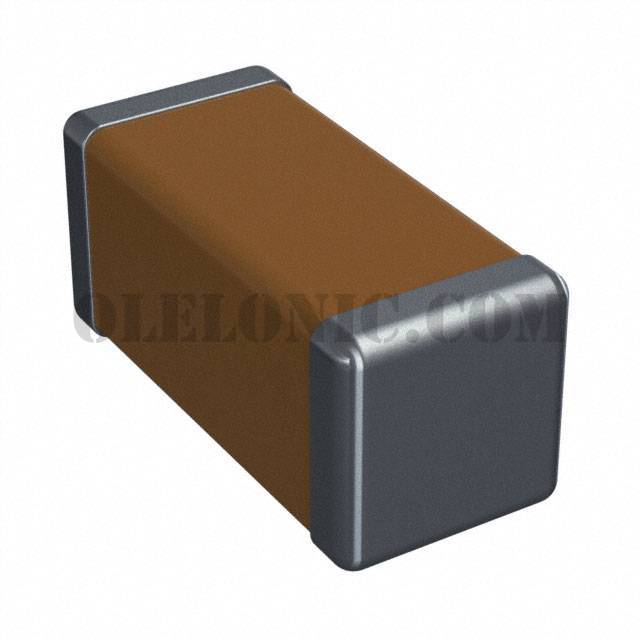

Mounting Type	Surface Mount, MLCC
Package / Case	1808 (4520 Metric)
Size / Dimension	0.181" L x 0.079" W (4.60mm x 2.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.071" (1.80mm)
Lead Spacing	-
Lead Style	-

2225HC153KAT1A	AVX Corporation, 0.015µF ±10% 3000V (3kV) Ceramic Capacitor X7R 2225 (5763 Metric),	View
2225CC224KAT1A	AVX Corporation, 0.22µF ±10% 630V Ceramic Capacitor X7R 2225 (5763 Metric),	View
1812AA471JAT1A	AVX Corporation, 470pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1812SA561KAT1A	AVX Corporation, 560pF ±10% 1500V (1.5kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1206SA101JAT1A	AVX Corporation, 100pF ±5% 1500V (1.5kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View
1812CC683KAT1A	AVX Corporation, 0.068µF ±10% 630V Ceramic Capacitor X7R 1812 (4532 Metric),	View
1206GC681KAT2A	AVX Corporation, 680pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1206 (3216 Metric),	View
1206GC101KAT1A	AVX Corporation, 100pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1206 (3216 Metric),	View
1812SC472KAT1A	AVX Corporation, 4700pF ±10% 1500V (1.5kV) Ceramic Capacitor X7R 1812 (4532 Metric),	View
1808HC471KAT2A	AVX Corporation, 470pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1206AA471JAT1A	AVX Corporation, 470pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View
1206AA471JAT2A	AVX Corporation, 470pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View

1808AC103MAT1A

Part Number1808AC103MAT1A
