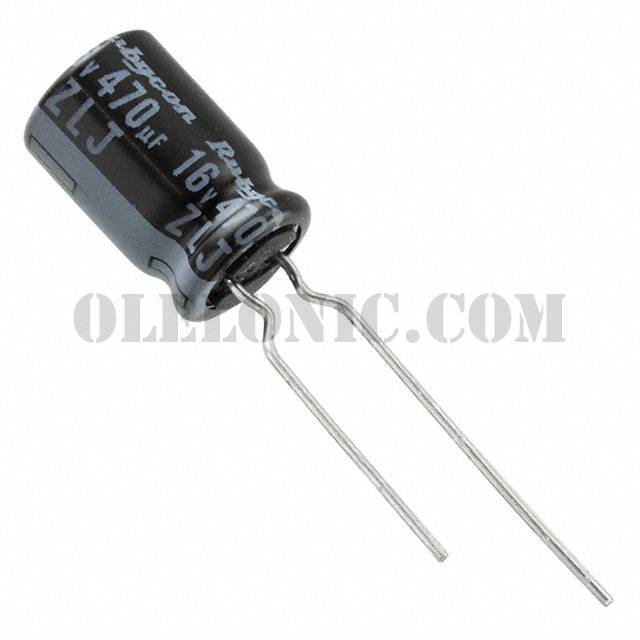

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	1000
Manufacturer	Rubycon
Series	ZLJ
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	9000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	660mA @ 120Hz
Ripple Current @ High Frequency	1.2A @ 100kHz
Impedance	75 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16ZLJ470MTA8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View
50ZLJ330M10X20	Rubycon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ820M18X40	Rubycon, 820µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
63ZLJ680MG412.5X35	Rubycon, 680µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
35ZLJ820MG412.5X20	Rubycon, 820µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
35ZLJ1500MGC16X20	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
25ZLJ2200MGC16X20	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ270M12.5X30	Rubycon, 270µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
35ZLJ47M5X11	Rubycon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, ZLJ	View
16ZLJ470M8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View
50ZLJ120M8X16	Rubycon, 120µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
25ZLJ1500MGA12.5X20	Rubycon, 1500µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View

16ZLJ470MTA8X11.5

Part Number16ZLJ470MTA8X11.5
