Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	1000
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	840mA @ 120Hz
Ripple Current @ High Frequency	1.4A @ 100kHz
Impedance	46 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

63YXG56MEFC8X11.5	Rubycon, 56µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
16YXG1000MEFC12.5X16	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG100MEFC8X11.5	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
16YXG680MEFC8X20	Rubycon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
10YXG3300MEFC12.5X25	Rubycon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG4700MEFC18X35.5	Rubycon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
6.3YXG1500MEFC10X20	Rubycon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
25YXG220MEFC8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
25YXG330MEFCT78X11.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
100YXG820MEFC18X40	Rubycon, 820µF 100V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG470MEFCT810X16	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
25YXG2200MEFC12.5X35	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View

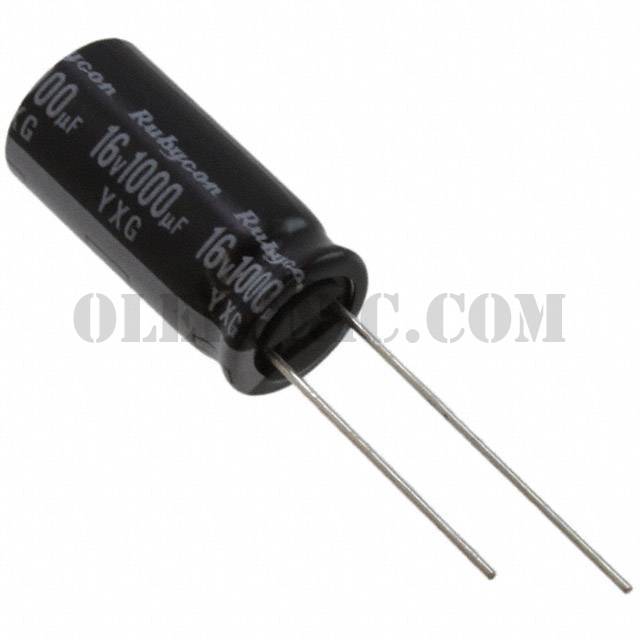

16YXG1000MEFC10X20
