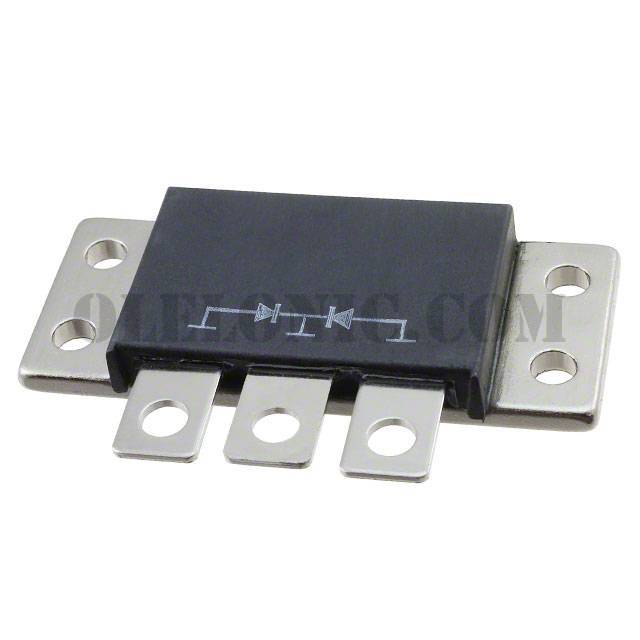

163CMQ080

Part Number163CMQ080

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 80V 80A TO249AA

Datasheet163CMQ Series

Package / CaseTO-249AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 80V 80A Chassis Mount TO-249AA

To learn about the specification of 163CMQ080, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 163CMQ080 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 163CMQ080.
We are offering 163CMQ080 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

163CMQ080 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	163CMQ Series
Standard Package	24
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io) (per Diode)	80A
Voltage - Forward (Vf) (Max) @ If	1.17V @ 80A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1.5mA @ 80V
Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount
Package / Case	TO-249AA
Supplier Device Package	TO-249AA
