Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	1000
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	490mA @ 120Hz
Ripple Current @ High Frequency	686mA @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	1.673" (42.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

100TXW150MEFC8X50	Rubycon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
400TXW100MEFC16X35	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW120MEFC16X25	Rubycon, 120µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
100TXW220MEFC10X40	Rubycon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
160TXW330MEFC16X30	Rubycon, 330µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
100TXW220MEFC8X60	Rubycon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
100TXW82MEFC8X25	Rubycon, 82µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
250TXW100MEFC12.5X30	Rubycon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW150MEFC12.5X25	Rubycon, 150µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW820MEFC18X50	Rubycon, 820µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW470MEFC16X40	Rubycon, 470µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW100MEFC8X40	Rubycon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View

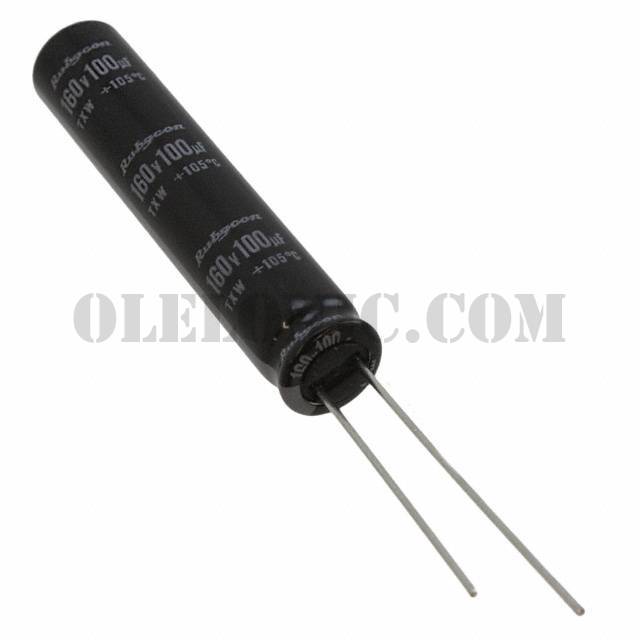

160TXW100MEFC8X40
