Home/Product Catalog/Inductors, Coils, Chokes / Fixed Inductors/ 1538M20

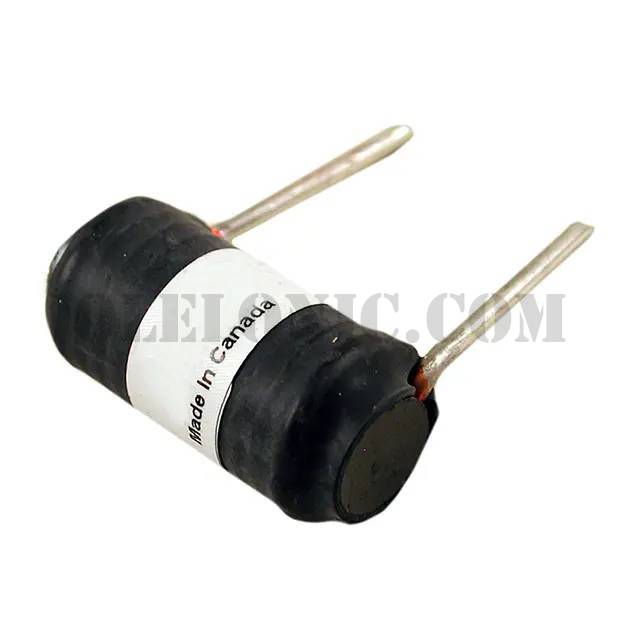

1538M20

1538M20

Part Number1538M20

ManufacturerHammond Manufacturing

DescriptionFIXED IND 100UH 10A 27 MOHM TH

Datasheet1538, 1539 Series

Package / CaseRadial, Horizontal Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH Unshielded Wirewound Inductor 10A 27mOhm Max Radial, Horizontal Cylinder

To learn about the specification of 1538M20, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1538M20 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1538M20.
We are offering 1538M20 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1538M20 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1538, 1539 Series
Standard Package	1
Manufacturer	Hammond Manufacturing
Series	1538
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	100µH
Tolerance	±10%
Current Rating (Amps)	10A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	27mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Horizontal Cylinder
Supplier Device Package	-
Size / Dimension	0.940" Dia x 1.620" L (23.88mm x 41.15mm)
Height - Seated (Max)	-
