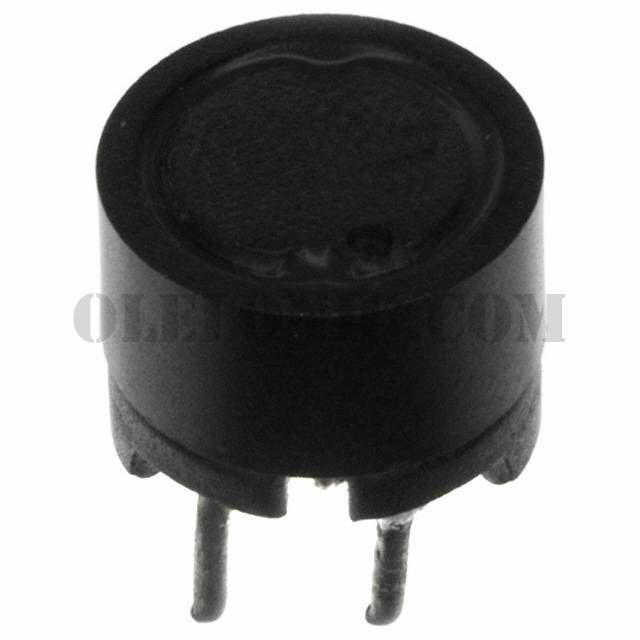

12LRS223C

Part Number12LRS223C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 22UH 2.6A 90 MOHM TH

Datasheet1200LRS Series

Package / CaseRadial, Vertical Cylinder, 4 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Shielded Wirewound Inductor 2.6A 90mOhm Max Radial, Vertical Cylinder, 4 Leads

To learn about the specification of 12LRS223C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 12LRS223C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 12LRS223C.
We are offering 12LRS223C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

12LRS223C - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

1200LRS Series

Standard Package

250

Manufacturer

Murata Power Solutions Inc.

Series

1200LRS

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Inductance

22µH

Tolerance

±20%

Current Rating (Amps)

2.6A

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

90mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical Cylinder, 4 Leads

Supplier Device Package

Size / Dimension

0.413" Dia (10.50mm)

Height - Seated (Max)

0.335" (8.50mm)
