Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage MLC Chips
Standard Package	4000
Manufacturer	AVX Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1000pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1206 (3216 Metric)
Size / Dimension	0.130" L x 0.063" W (3.30mm x 1.60mm)
Height - Seated (Max)	-
Thickness (Max)	0.071" (1.80mm)
Lead Spacing	-
Lead Style	-

1808JA330KAT1A	AVX Corporation, 33pF ±10% 4000V (4kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric),	View
1808HC102KAT2A	AVX Corporation, 1000pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1808AC332KAT2A	AVX Corporation, 3300pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1812WA101KAT1A	AVX Corporation, 100pF ±10% 2500V (2.5kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1210GA101JAT1A	AVX Corporation, 100pF ±5% 2000V (2kV) Ceramic Capacitor C0G, NP0 1210 (3225 Metric),	View
1812GC102MAT2A	AVX Corporation, 1000pF ±20% 2000V (2kV) Ceramic Capacitor X7R 1812 (4532 Metric),	View
1812HA470JAT1A	AVX Corporation, 47pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1808HC102KAT1A	AVX Corporation, 1000pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1812SC103KAT1A	AVX Corporation, 10000pF ±10% 1500V (1.5kV) Ceramic Capacitor X7R 1812 (4532 Metric),	View
1812HA331KAT1A	AVX Corporation, 330pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1825HC103KAT1A	AVX Corporation, 10000pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1825 (4564 Metric),	View
2225WC103KAT1A	AVX Corporation, 10000pF ±10% 2500V (2.5kV) Ceramic Capacitor X7R 2225 (5763 Metric),	View

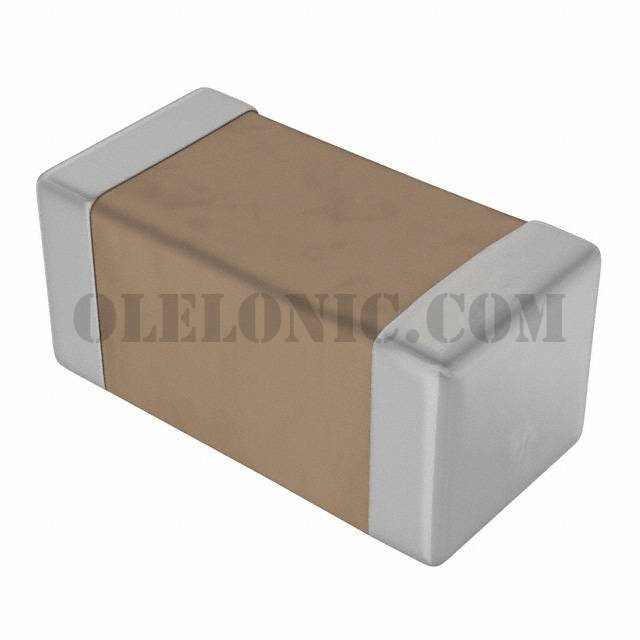

1206GC102KAT1A

Part Number1206GC102KAT1A
