Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage MLC Chips
Standard Package	1
Manufacturer	AVX Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Mounting Type	Surface Mount, MLCC
Package / Case	1206 (3216 Metric)
Size / Dimension	0.130" L x 0.063" W (3.30mm x 1.60mm)
Height - Seated (Max)	-
Thickness (Max)	0.071" (1.80mm)
Lead Spacing	-
Lead Style	-

0805AC102KAT1A	AVX Corporation, 1000pF ±10% 1000V (1kV) Ceramic Capacitor X7R 0805 (2012 Metric),	View
1812AA102MAT1A	AVX Corporation, 1000pF ±20% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1812GC102MAT1A	AVX Corporation, 1000pF ±20% 2000V (2kV) Ceramic Capacitor X7R 1812 (4532 Metric),	View
1812AA102KAT1A	AVX Corporation, 1000pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1808GC102MAT2A	AVX Corporation, 1000pF ±20% 2000V (2kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1808AA470KAT1A	AVX Corporation, 47pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric),	View
1812AA102JAT1A	AVX Corporation, 1000pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
2220GC103MAT1A	AVX Corporation, 10000pF ±20% 2000V (2kV) Ceramic Capacitor X7R 2220 (5750 Metric),	View
0805AA470KAT1A	AVX Corporation, 47pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 0805 (2012 Metric),	View
1812AA102MAT1A	AVX Corporation, 1000pF ±20% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1812SC103KAT1A	AVX Corporation, 10000pF ±10% 1500V (1.5kV) Ceramic Capacitor X7R 1812 (4532 Metric),	View
1210GC102MAT1A	AVX Corporation, 1000pF ±20% 2000V (2kV) Ceramic Capacitor X7R 1210 (3225 Metric),	View

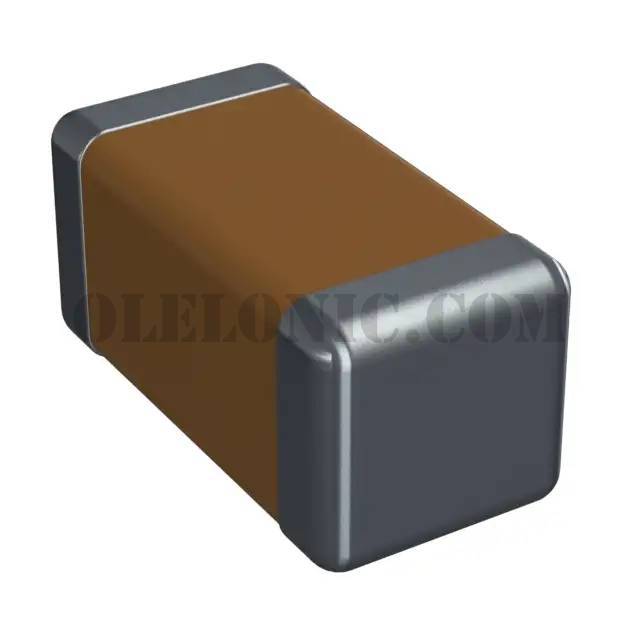

1206GC101KAT1A

Part Number1206GC101KAT1A
