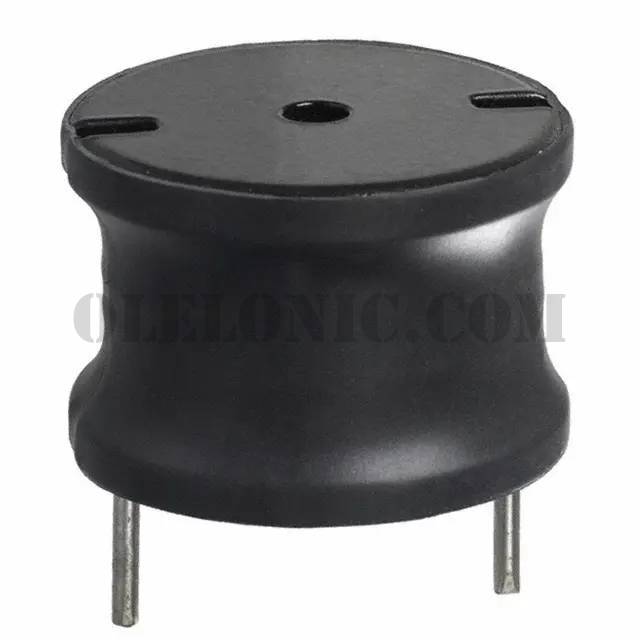

1140-272K-RC


1140-272K-RC

Part Number1140-272K-RC

Manufacturer

Description

Datasheet

Package / CaseRadial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1140-272K-RC - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package70
ManufacturerBourns Inc.
Series1140
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance2.7mH
Tolerance±10%
Current Rating (Amps)2.2A
Current - Saturation3.9A
ShieldingUnshielded
DC Resistance (DCR)555mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 105°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial
Supplier Device Package-
Size / Dimension1.500" Dia (38.10mm)
Height - Seated (Max)1.030" (26.16mm)
Base Part Number1140
