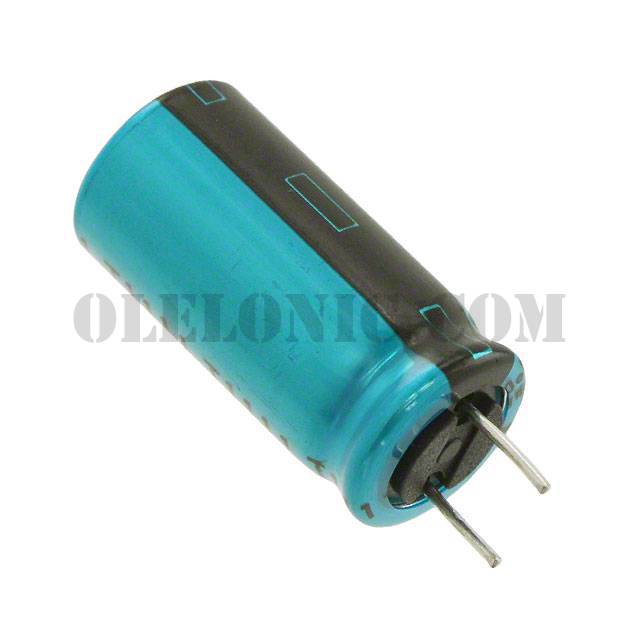

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	RX30 Series
Standard Package	1000
Manufacturer	Rubycon
Series	RX30
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 130°C
Operating Temperature	-40°C ~ 130°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	750mA @ 120Hz
Ripple Current @ High Frequency	960mA @ 100kHz
Impedance	73 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

100RX3022M8X11.5	Rubycon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
10RX30470M10X12.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
10RX302200MCE12.5X25	Rubycon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
100RX30330M16X31.5	Rubycon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
100RX304R7M8X11.5	Rubycon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX30330MG412.5X25	Rubycon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
400RX304R7M8X20	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
400RX301M6.3X11	Rubycon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 130°C, RX30	View
16RX30330MTA8X11.5	Rubycon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX30220MG412.5X20	Rubycon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
63RX301500M18X40	Rubycon, 1500µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
35RX302200M16X35.5	Rubycon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View

10RX301000MCA10X20

Part Number10RX301000MCA10X20
