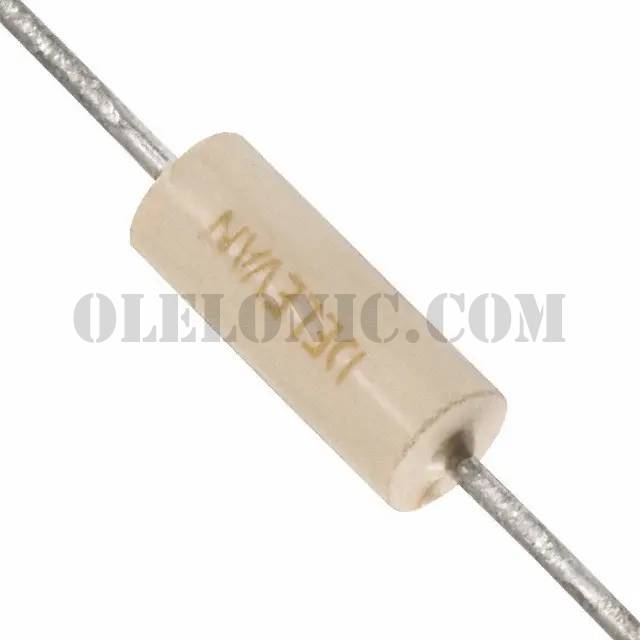

1025-20K

1025-20K

Part Number1025-20K

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 1UH 390MA 1 OHM TH

Datasheet1025(R),26(R) Series

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Inductor 390mA 1Ohm Max Axial

To learn about the specification of 1025-20K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1025-20K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1025-20K.
We are offering 1025-20K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1025-20K - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1025(R),26(R) Series
Standard Package	1
Manufacturer	API Delevan Inc.
Series	Military, MIL-PRF-M15305, MS75083
Packaging	Cut Tape (CT)
Part Status	Active
Type	-
Material - Core	Phenolic
Inductance	1µH
Tolerance	±10%
Current Rating (Amps)	390mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	1Ohm Max
Q @ Freq	25 @ 25MHz
Frequency - Self Resonant	230MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	25MHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max)	-
