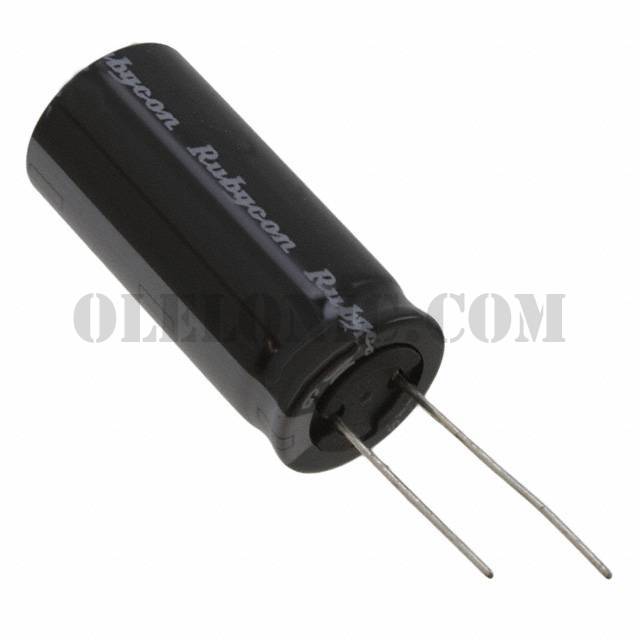

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	200
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

50YXG560MEFC12.5X25	Rubycon, 560µF 50V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
50YXG47MEFC6.3X11	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
25YXG47MEFC5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
16YXG2700MEFC16X20	Rubycon, 2700µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
100YXG100MEFC10X23	Rubycon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
16YXG4700MEFC16X31.5	Rubycon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG1800MEFC18X20	Rubycon, 1800µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG470MEFC10X20	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
16YXG3900MEFC16X25	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
6.3YXG1500MEFC10X20	Rubycon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
10YXG10000MEFC16X40	Rubycon, 10000µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG680MEFC10X20	Rubycon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View

100YXG1000MEFC18X40

Part Number100YXG1000MEFC18X40
