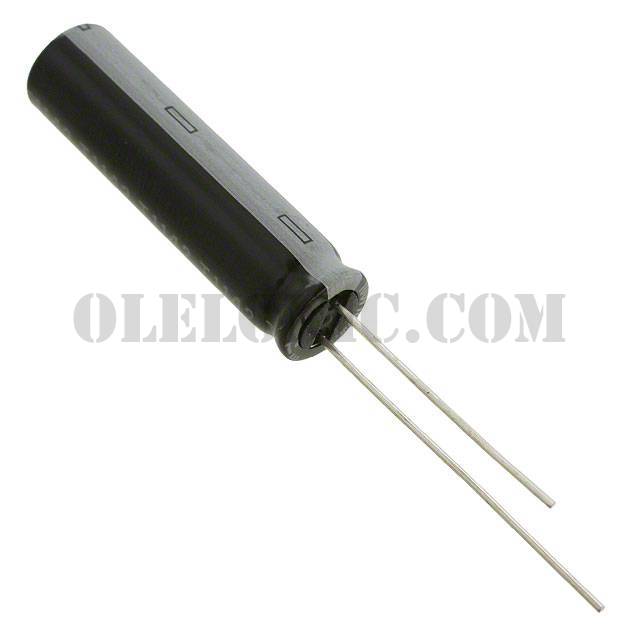

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	500
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	785mA @ 120Hz
Ripple Current @ High Frequency	1.57A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

160TXW150MEFC12.5X25	Rubycon, 150µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW68MEFC8X30	Rubycon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW100MEFC12.5X30	Rubycon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
350TXW22MEFC8X30	Rubycon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW120MEFC10X30	Rubycon, 120µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW470MEFC16X40	Rubycon, 470µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW390MEFC16X35	Rubycon, 390µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW120MEFC16X25	Rubycon, 120µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW180MEFC16X30	Rubycon, 180µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW330MEFC12.5X50	Rubycon, 330µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
420TXW100MEFCCC16X40	Rubycon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
100TXW220MEFC10X40	Rubycon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View

100TXW100MEFC8X30

Part Number100TXW100MEFC8X30
